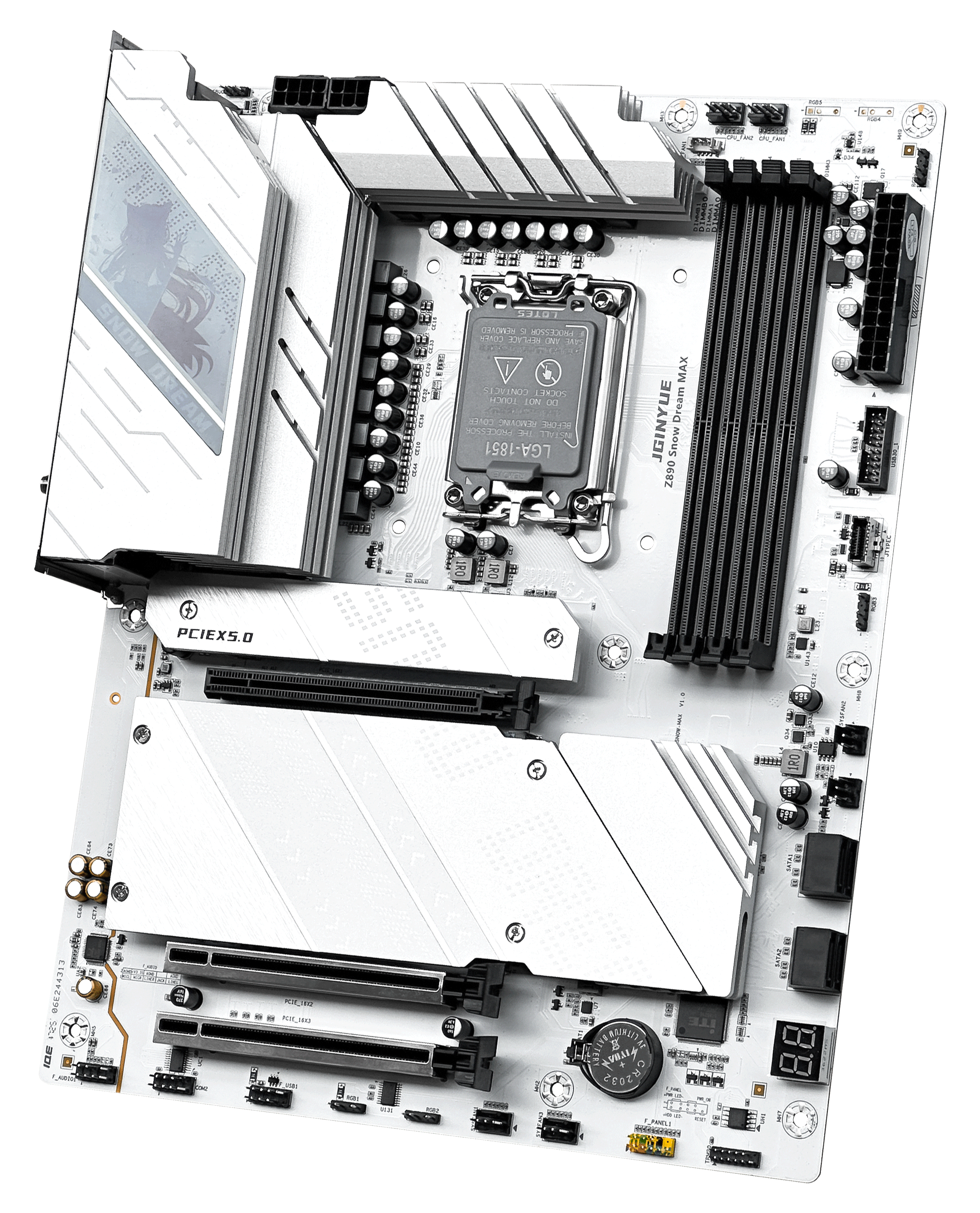

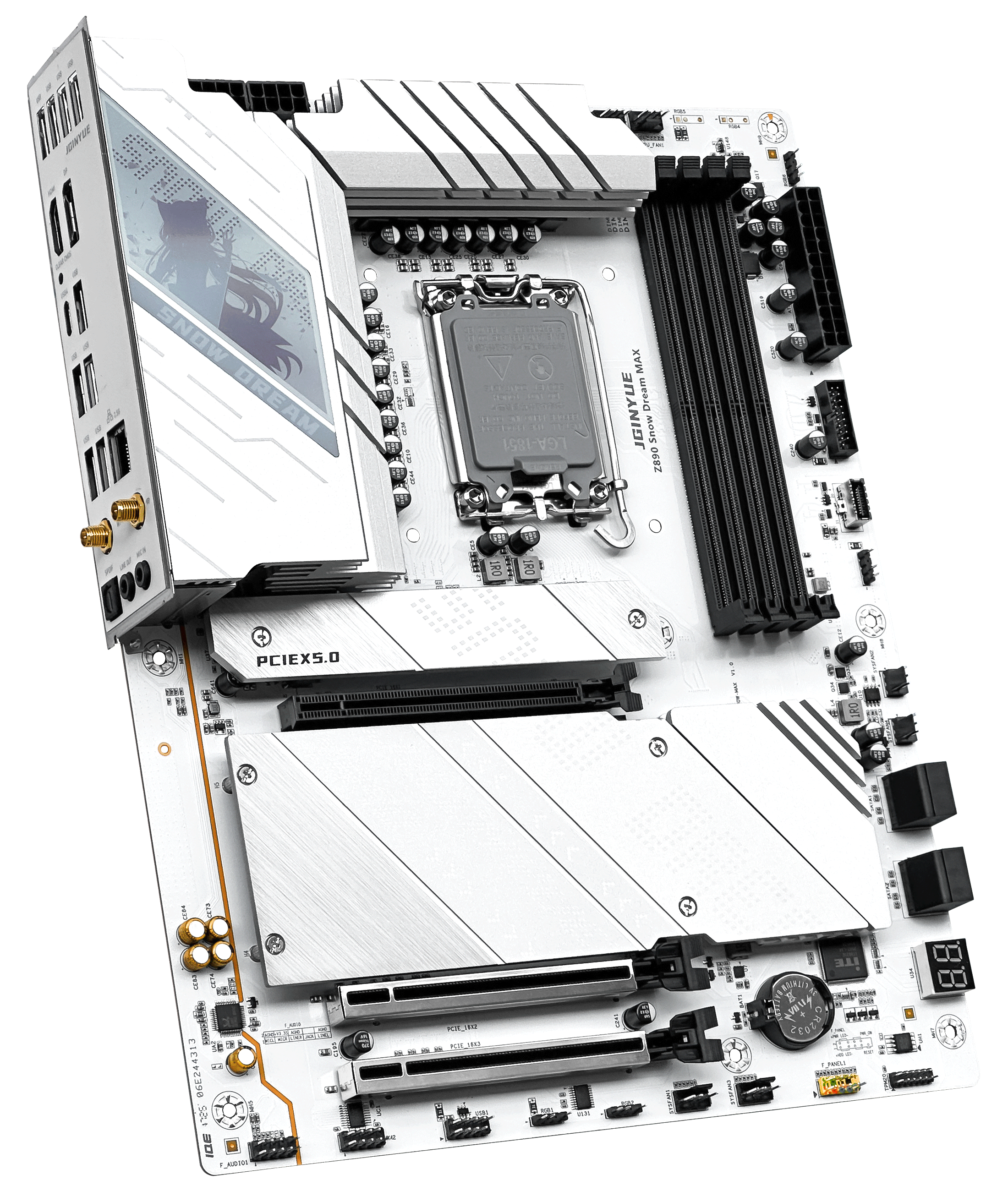

JGINYUE Z890 Snow Dream MAX motherboard
Support LGA1851 slot Intel ® The Core ™ Ultra200 series processors
4xDDR5 dual channel 4800~9000 (O.C) MHz
4xSATA3.0 1xM.2 slots/Supports PCIe 5.0x4, 3xM.2 slots/Supports PCIe 4.0x4
1xPCIe 5.0X16 slot, 2xPCIe 4.0X16 slot x4 speed
4xARGB 5V3 pin (MCU independent control chip)
1xType-E slot, expandable with 1 5Gbps Type-C interface, 1xType-C slot 40G (USB4)
  • Details Introduction
  • specification parameter
  • download
  • Motherboard model
  • Z890 Snow Dream MAX
  • CPU support
  • Support LGA1851 slot Intel ® The Core ™ Ultra200 series processors
  • chipset
  • Intel ® Z890 chipset
  • Memory slot
  • 4xDDR5 dual channel 4800~9000 (O.C) MHz
  • Memory capacity
  • 192GB
  • Storage interface
  • 4xSATA3.0 1xM.2 slots/Supports PCIe 5.0x4, 3xM.2 slots/Supports PCIe 4.0x4
  • PCIe slot
  • 1xPCIe 5.0X16 slot, 2xPCIe 4.0X16 slot x4 speed

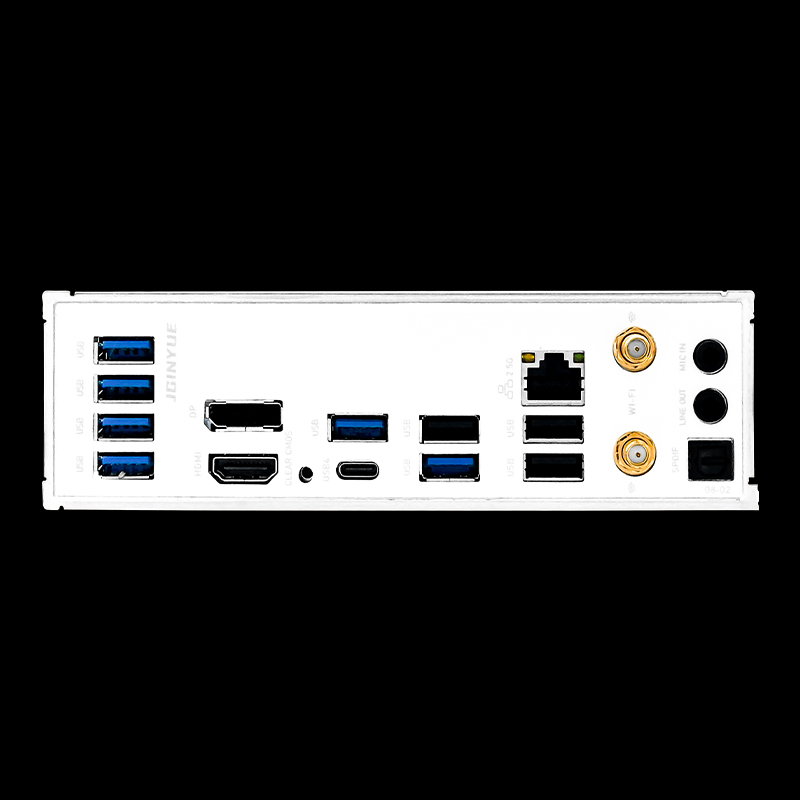

  • USB interface
  • 3xUSB2.0，6xUSB3.2； 1xUSB 2.0 pin, capable of connecting 2 additional external USB 2.0 interfaces; 1xUSB 3.0 pin, capable of connecting 2 additional external USB 3.2 interfaces
  • ARGB needle arrangement
  • 4xARGB 5V3 pin (MCU independent control chip)
  • display interface
  • 1xHDMI，1xDP
  • Type interface
  • 1xType-E slot, expandable with 1 5Gbps Type-C interface, 1xType-C slot 40G (USB4)
  • Fan pin
  • 4x4 needle arrangement 2x3 needle arrangement
  • Number of power supply phases
  • 16 phase 60A SPS DR MOS digital power supply
  • WiFi interface
  • 1xWiFi interface (onboard 7902 module with antenna)
  • network interface
  • 1x2.5G network interface (RTL8125BG)
  • Audio chip
  • ALC897 (onboard 6-channel HD Audio codec)
  • Specification
  • ATX 30.5x24.5cm
  • Power supply interface
  • 1x24PIN power socket 2x8PIN 12V power socket
  • Other interfaces
  • 1x TPM slot, 1x clear CMOS button, 1x diagnostic digital display light, 1x audio fiber output interface
Alsa
Software Download
BIOS
instruction book
    • FileVersion System Updated Date brief introduction download
    Realtek Audio Driver 6.0.9239.1.exe Win10，Win11 64bit 2024-10-28 Sound card driver
    Realtek_Install_Win10_10060_06242022.exe Win10，Win11 64bit 2024-10-28 Network card driver
