JGINYUE B760M-HD WIFI motherboard
Supports Intel's 12th, 13th, and 14th generations LGA1700 platform processors
Supports dual channel 2xDDR4 memory slots
G1 mode 2133-4200MHz (supports XMP technology/actual situation may vary depending on different CPU and memory configurations)
G2 mode 2133-4800MHz (supports XMP technology/actual situation may vary depending on different CPU and memory configurations)
8-phase power supply

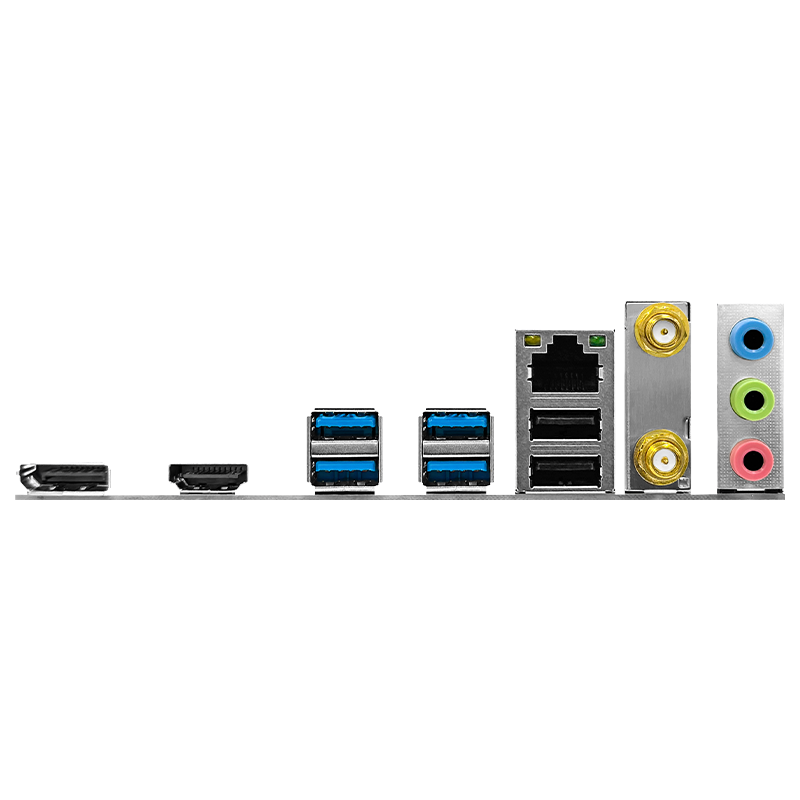

Front pin 1xUSB2.0, 1xUSB3.2; Rear 4xUSB 3.2; 2xUSB2.0
2xM.2 NVME protocol interface; 3xSATA3.0
1xPCIe X16 slot; 1xPCIe X1 slot
1x Gigabit Ethernet interface
1xWIFI interface (onboard 9560 module with antenna)
  • Details Introduction
  • specification parameter
  • download
  • Motherboard model
  • B760M-HD WIFI
  • chipset
  • intel B760
  • CPU pins
  • Supports Intel's 12th, 13th, and 14th generation platform processors
  • Memory slot
  • 2xDDR4 memory slots
  • Memory capacity
  • Maximum capacity supports 64G
  • Memory standard
  • Supports dual channel DDR4, G1 mode 2133-4200MHz (supports XMP technology/actual situation may vary depending on different CPU and memory configurations), G2 mode 2133-4800MHz (supports XMP technology/actual situation may vary depending on different CPU and memory configurations)
  • display interface
  • 1xHDMI interface, 1xDP interface
  • Storage interface
  • 3xSATA3.0 6Gbps interface; 2xM.2 nvme protocol 4.0 rate interface
  • USB interface
  • Rear 4xUSB3.2, 2xUSB2.0; Front end 1xUSB3.2, 1xUSB2.0
  • Expansion Slots
  • 1xPCI Express x16 slot; 1xPCI Express x1 slot
  • Wireless interface
  • 1xWiFi interface (onboard 9560 module with antenna)
  • Fan pin
  • 2x4-pin fan pins
  • Onboard sound card
  • Realtek ALC897
  • Onboard network card
  • Realtek 8111H
  • Power socket
  • 1x24Pin motherboard power supply; 1x8Pin processor power supply
  • Number of power supply phases
  • 8-phase power supply
  • ARGB pin
  • 4x5v3 pin ARGB pin MCU control chip
  • Specification
  • 22cmx18cm； M-ATX
  • supportive system
  • Windows10； Windows11
  • Other interfaces
  • SPK1 buzzer pin
Alsa
Software Download
BIOS
instruction book
    • FileVersion System Updated Date brief introduction download
    Realtek_Install_Win10_10051 win10,win11 64 bits 2024-05-09 Network Driver
    Realtek_Audio_Winx64 win10,win11 64 bits 2024-05-09 audio driver
    • FileVersion System Updated Date brief introduction download
    OpenRGB-MCU-20240913 win10&win11 2024-09-16 RGB desktop control software
